UI Widgets

UI widgets allow you to create rich, interactive user interfaces that MCP clients can display. The framework supports multiple widget formats including MCP-UI and OpenAI Apps SDK components.

The mcp-use framework automatically registers all React components in your resources/ folder as MCP tools and resources, eliminating the need for manual configuration and boilerplate code. This powerful feature allows you to focus on building UI components while the framework handles the MCP integration.

Overview

When you create a React component in the resources/ folder with proper metadata, mcp-use automatically:

Registers an MCP Tool - LLMs can invoke it with parameters
Registers an MCP Resource - Clients can discover and access it
Extracts Input Schema - Tool parameters are derived from component props
Serves with HMR - Hot Module Replacement for rapid development
Builds for Production - Optimized Apps SDK widgets
Handles Props Mapping - From LLM → Tool arguments → Apps SDK → React component

No manual registration required! Just create a widget file, export metadata, and the mcp-use SDK does the rest.

Quick Start

1. Create a Project

Start with the Apps SDK template which includes automatic widget registration:

npx create-mcp-use-app my-mcp-server --template apps-sdk
cd my-mcp-server
npm run dev

This creates a project with:

my-mcp-server/
├── resources/              # 👈 Put your UI widgets here
│   └── display-weather.tsx # Example widget
├── index.ts               # Server entry point
└── package.json

Add a new file in resources/, for example resources/user-card.tsx:

import React from 'react';
import { z } from 'zod';
import { useWidget } from 'mcp-use/react';

// Define the props schema
const propSchema = z.object({
  name: z.string().describe('User full name'),
  email: z.string().email().describe('User email address'),
  avatar: z.string().url().optional().describe('Avatar image URL'),
  role: z.enum(['admin', 'user', 'guest']).describe('User role'),
});

// Export metadata for automatic registration
export const widgetMetadata = {
  description: 'Display a user profile card',
  inputs: propSchema,
};

type UserCardProps = z.infer<typeof propSchema>;

const UserCard: React.FC = () => {
  // useWidget hook provides props from Apps SDK or MCP-UI
  const { props, theme } = useWidget<UserCardProps>();

  const { name, email, avatar, role } = props;

  return (
    <div className={`p-6 rounded-lg shadow-lg ${theme === 'dark' ? 'bg-gray-800 text-white' : 'bg-white text-gray-900'}`}>
      {avatar && (
        <img
          src={avatar}
          alt={name}
          className="w-24 h-24 rounded-full mx-auto mb-4"
        />
      )}
      <h2 className="text-2xl font-bold text-center mb-2">{name}</h2>
      <p className="text-center text-gray-500 mb-2">{email}</p>
      <span className="inline-block px-3 py-1 rounded-full text-sm bg-blue-500 text-white">
        {role}
      </span>
    </div>
  );
};

export default UserCard;

3. That’s It!

The widget is automatically:

Registered as tool: user-card
Available as resource: ui://widget/user-card.html
Ready in ChatGPT: LLM can call it with name, email, avatar, role

No manual server.tool() or server.uiResource() calls needed!

How It Works

The Flow

When you call server.listen(), the framework automatically calls mountWidgets() which:

Scans the resources/ directory for .tsx and .ts files
Creates a Vite dev server for each widget with HMR support
Loads widget metadata using Vite SSR

2. Metadata Extraction

The framework looks for the widgetMetadata export in each widget file:

export const widgetMetadata = {
  description: 'Display weather for a city',
  inputs: propSchema,  // Zod schema for props
}

The inputs Zod schema defines:

What props the component needs
What parameters the tool accepts
Type validation and descriptions for the LLM

3. Tool Registration

The framework automatically registers a tool with:

Name: Derived from filename (e.g., display-weather.tsx → display-weather)
Description: From widgetMetadata.description
Inputs: Converted from Zod schema to MCP input definitions
Callback: Returns the widget resource with a unique URI

4. Resource Registration

The framework registers both:

Static Resource: ui://widget/{name}.html - Base resource
Dynamic Template: ui://widget/{name}-{id}.html - Unique per invocation

Each resource includes:

HTML Template: With proper script tags and styles
Apps SDK Metadata: CSP configuration, widget description, etc.
MIME Type: text/html+skybridge for Apps SDK compatibility

5. Props Flow

When an LLM invokes the tool:

LLM fills tool parameters based on context and inputs schema
MCP Server returns widget resource URI + structuredContent with params
Apps SDK (ChatGPT) loads the widget HTML
Apps SDK injects params as window.openai.toolInput
useWidget Hook reads from window.openai and provides props to React component
React Component renders with the props

widgetMetadata Object

Contains the information that the MCP resource (and the tool that exposes it) will use when are automatically built by mcp-use.

export const widgetMetadata = {
  // Required: Human-readable description
  description: string,

  // Required: Zod schema defining component props
  inputs: z.ZodObject<...>,
}

Props Schema with Zod

The inputs field uses Zod for:

Type Safety: TypeScript inference for props
Runtime Validation: Ensure correct data types
LLM Context: .describe() helps LLM understand what to fill

const propSchema = z.object({
  // Basic types
  name: z.string().describe('User name'),
  age: z.number().min(0).max(150).describe('User age'),
  active: z.boolean().describe('Is user active'),

  // Enums for specific choices
  status: z.enum(['pending', 'approved', 'rejected']).describe('Request status'),

  // Optional fields
  email: z.string().email().optional().describe('Optional email address'),

  // Arrays
  tags: z.array(z.string()).describe('List of tags'),

  // Nested objects
  address: z.object({
    street: z.string(),
    city: z.string(),
    zip: z.string(),
  }).describe('User address'),
});

The useWidget Hook

The useWidget hook is the bridge between Apps SDK and React:

import { useWidget } from 'mcp-use/react';

const MyWidget: React.FC = () => {
  const {
    // Props from LLM/tool invocation
    props,              // Typed props based on your schema
    output,             // Tool output data (if any)
    metadata,           // Response metadata
    state,              // Persistent widget state
    setState,           // Update widget state

    // Layout & theme
    theme,              // 'light' | 'dark'
    displayMode,        // 'inline' | 'fullscreen' | 'popup'
    safeArea,           // Safe area insets
    maxHeight,          // Max widget height
    userAgent,          // Device capabilities
    locale,             // User locale

    // Actions
    callTool,           // Call other MCP tools
    sendFollowUpMessage,// Send message to chat
    openExternal,       // Open external URLs
    requestDisplayMode, // Request display mode change

    // Availability
    isAvailable,        // Is Apps SDK available
  } = useWidget<MyPropsType>();

  return <div>...</div>;
};

Key Features

1. Props Without Props Components don’t accept props via React props. Instead, props come from the hook:

// ❌ Don't do this
const MyWidget: React.FC<MyProps> = ({ city, temperature }) => { ... }

// Do this
const MyWidget: React.FC = () => {
  const { props } = useWidget<MyProps>();
  const { city, temperature } = props;
  // ...
}

2. Automatic Provider Detection The hook automatically detects whether it’s running in:

Apps SDK (ChatGPT): Reads from window.openai
MCP-UI: Reads from URL parameters
Standalone: Uses default props

3. Theme Awareness

const { theme } = useWidget();
const bgColor = theme === 'dark' ? 'bg-gray-900' : 'bg-white';

4. Interactive Capabilities

const { callTool, sendFollowUpMessage } = useWidget();

// Call another tool
const result = await callTool('search', { query: 'weather' });

// Send message to chat
await sendFollowUpMessage('Show me weather for New York');

Here’s the complete display-weather.tsx from the template:

import React from 'react';
import { z } from 'zod';
import { useWidget } from 'mcp-use/react';

// Define props schema
const propSchema = z.object({
  city: z.string().describe('The city to display weather for'),
  weather: z.enum(['sunny', 'rain', 'snow', 'cloudy']).describe('The weather condition'),
  temperature: z.number().min(-20).max(50).describe('The temperature in Celsius'),
});

// Export metadata for auto-registration
export const widgetMetadata = {
  description: 'Display weather for a city',
  inputs: propSchema,
}

type WeatherProps = z.infer<typeof propSchema>;

const WeatherWidget: React.FC = () => {
  const { props, theme } = useWidget<WeatherProps>();
  const { city, weather, temperature } = props;

  const getWeatherIcon = (weatherType: string) => {
    switch (weatherType?.toLowerCase()) {
      case 'sunny': return '☀️';
      case 'rain': return '🌧️';
      case 'snow': return '❄️';
      case 'cloudy': return '☁️';
      default: return '🌤️';
    }
  };

  const getWeatherColor = (weatherType: string) => {
    switch (weatherType?.toLowerCase()) {
      case 'sunny': return 'from-yellow-400 to-orange-500';
      case 'rain': return 'from-blue-400 to-blue-600';
      case 'snow': return 'from-blue-100 to-blue-300';
      case 'cloudy': return 'from-gray-400 to-gray-600';
      default: return 'from-gray-300 to-gray-500';
    }
  };

  const bgColor = theme === 'dark' ? 'bg-gray-900' : 'bg-white';
  const textColor = theme === 'dark' ? 'text-gray-100' : 'text-gray-800';

  return (
    <div className={`max-w-sm mx-auto ${bgColor} rounded-xl shadow-lg overflow-hidden`}>
      <div className={`h-32 bg-gradient-to-br ${getWeatherColor(weather)} flex items-center justify-center`}>
        <div className="text-6xl">{getWeatherIcon(weather)}</div>
      </div>

      <div className="p-6">
        <div className="text-center">
          <h2 className={`text-2xl font-bold ${textColor} mb-2`}>{city}</h2>
          <div className="flex items-center justify-center space-x-4">
            <span className={`text-4xl font-light ${textColor}`}>{temperature}°</span>
            <div className="text-right">
              <p className="text-lg font-medium capitalize">{weather}</p>
            </div>
          </div>
        </div>
      </div>
    </div>
  );
};

export default WeatherWidget;

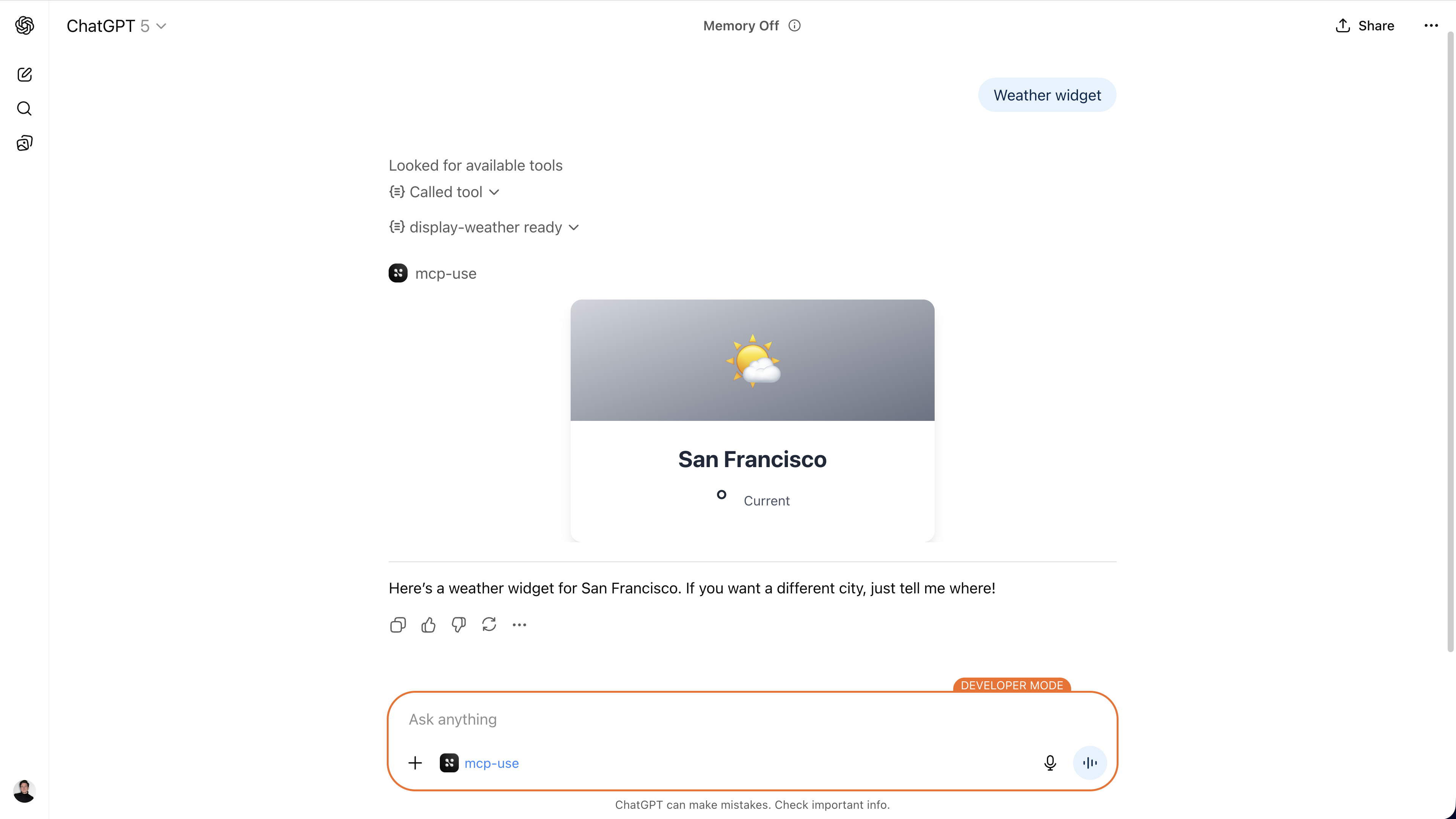

Testing in ChatGPT

Once your server is running, you can test in ChatGPT: User: “Show me the weather in Paris. It’s 22 degrees and sunny.” ChatGPT (behind the scenes):

Recognizes it should use display-weather tool
Fills parameters: { city: "Paris", weather: "sunny", temperature: 22 }
Calls the tool
Receives widget resource URI
Loads and displays the widget

Advanced Features

Accessing Tool Output

Widgets can access the output of their own tool execution:

const { props, output } = useWidget<MyProps, MyOutput>();

// props = tool input parameters
// output = what the tool returned (if any additional data)

Widgets can maintain state across interactions:

const { state, setState } = useWidget<MyProps, any, any, MyState>();

// Save state
await setState({ favoriteCity: 'Tokyo' });

// State persists across widget re-renders
console.log(state?.favoriteCity);

Calling Other Tools

Widgets can call other MCP tools:

const { callTool } = useWidget();

const handleSearch = async () => {
  const result = await callTool('search_cities', {
    query: 'tokyo'
  });
  console.log(result);
};

Display Mode Control

Request fullscreen or popup display:

const { requestDisplayMode } = useWidget();

const handleExpand = async () => {
  await requestDisplayMode('fullscreen');
};

Development Workflow

1. Start Dev Server

npm run dev

This starts:

MCP server with auto-widget registration
Vite dev server with HMR for each widget
Inspector UI for testing

Add a new file in resources/:

// resources/my-new-widget.tsx
import React from 'react';
import { z } from 'zod';
import { useWidget } from 'mcp-use/react';

const propSchema = z.object({
  title: z.string(),
});

export const widgetMetadata = {
  description: 'My new widget',
  inputs: propSchema,
};

const MyNewWidget: React.FC = () => {
  const { props } = useWidget<{ title: string }>();
  return <h1>{props.title}</h1>;
};

export default MyNewWidget;

3. Test in Inspector

Open http://localhost:3000/inspector
Navigate to Tools
Find my-new-widget tool (automatically registered!)
Test with parameters: { "title": "Hello" }
See the widget render

4. Edit with Hot Reload

Edit your widget file and save. Changes appear instantly thanks to HMR!

5. Build for Production

npm run build
npm start

Builds optimized widget bundles for production deployment.

Under the Hood

Server Initialization

In your index.ts:

import { createMCPServer } from 'mcp-use/server';

const server = createMCPServer('my-server', {
  version: '1.0.0',
  baseUrl: process.env.MCP_URL, // For Apps SDK CSP
});

// ... define manual tools/resources if needed ...

// This automatically calls mountWidgets() internally
await server.listen(3000);

mountWidgets() Implementation

The mountWidgets() method (called automatically by listen()):

async mountWidgets(options?: {
  baseRoute?: string;      // Default: '/mcp-use/widgets'
  resourcesDir?: string;   // Default: 'resources'
}): Promise<void>

What it does:

Scans the resources/ directory for .tsx and .ts files
Creates Vite dev server with React and Tailwind plugins
Generates entry files for each widget in .mcp-use/ temp directory
Serves widgets at /mcp-use/widgets/{name} with HMR
Extracts metadata using Vite SSR module loading
Registers both tool and resource for each widget

Development:

Widget: http://localhost:3000/mcp-use/widgets/display-weather
Assets: http://localhost:3000/mcp-use/widgets/display-weather/assets/...

Production (with baseUrl):

Widget: https://myserver.com/mcp-use/widgets/display-weather
Assets: https://myserver.com/mcp-use/widgets/display-weather/assets/...

Apps SDK CSP Configuration

The framework automatically configures Content Security Policy for Apps SDK:

// Automatic CSP when baseUrl is set
if (baseUrl) {
  appsSdkMetadata['openai/widgetCSP'] = {
    connect_domains: [],
    resource_domains: [baseUrl]  // Your server is whitelisted
  }
}

Configuration

Custom Resources Directory

await server.listen(3000);
// Automatically uses 'resources/' directory

// Or customize:
await server.mountWidgets({
  resourcesDir: 'widgets',  // Use 'widgets/' instead
  baseRoute: '/ui'          // Serve at '/ui/{name}'
});

Base URL for Production

Set the MCP_URL environment variable or pass baseUrl:

const server = createMCPServer('my-server', {
  baseUrl: process.env.MCP_URL || 'https://myserver.com'
});

This ensures:

Widget URLs use the correct domain
Apps SDK CSP automatically includes your server
Works behind proxies and custom domains

Environment Variables

# Server Configuration
PORT=3000
HOST=localhost
MCP_URL=https://myserver.com

# For Production
NODE_ENV=production

Best Practices

1. Use Descriptive Schemas

Help the LLM understand your inputs:

const propSchema = z.object({
  // Good: Clear description
  city: z.string().describe('The city name (e.g., "New York", "Tokyo")'),

  // ❌ Bad: No description
  city: z.string(),
});

2. Provide Defaults

Make optional fields with sensible defaults:

const propSchema = z.object({
  theme: z.enum(['light', 'dark']).default('light'),
  maxResults: z.number().min(1).max(100).default(10),
});

3. Keep Widgets Focused

Each widget should do one thing well:

// Good: Focused widget
export const widgetMetadata = {
  description: 'Display weather for a single city',
  inputs: z.object({ city: z.string() }),
};

// ❌ Bad: Too many responsibilities
export const widgetMetadata = {
  description: 'Display weather, forecast, map, and news for cities',
  inputs: z.object({ /* too many fields */ }),
};

4. Theme Support

Always support both themes:

const { theme } = useWidget();
const bg = theme === 'dark' ? 'bg-gray-900' : 'bg-white';
const text = theme === 'dark' ? 'text-white' : 'text-black';

5. Error Handling

Handle missing or invalid props gracefully:

const { props } = useWidget<MyProps>();

if (!props.city) {
  return <div>No city provided</div>;
}

return <WeatherDisplay city={props.city} />;

6. Performance

Keep widgets lightweight:

Minimize dependencies
Lazy load heavy components
Use React.memo for expensive renders

import { lazy, Suspense } from 'react';

const HeavyChart = lazy(() => import('./HeavyChart'));

const MyWidget: React.FC = () => {
  return (
    <Suspense fallback={<div>Loading...</div>}>
      <HeavyChart />
    </Suspense>
  );
};

Troubleshooting

Problem: Widget file exists but tool doesn’t appear Solutions:

Ensure file has .tsx or .ts extension
Export widgetMetadata object
Export default React component
Check server logs for errors during widget loading

Props Not Passed

Problem: Component receives empty props Solutions:

Use useWidget() hook instead of React props
Ensure widgetMetadata.inputs is a valid Zod schema
Check Apps SDK is injecting window.openai.toolInput
Verify tool parameters match schema

HMR Not Working

Problem: Changes don’t reflect without restart Solutions:

Check Vite dev server is running
Ensure you’re editing the source file in resources/
Clear browser cache
Check console for Vite errors

CSP Errors

Problem: Widget loads but assets fail with CSP errors Solutions:

Set baseUrl in server config
Add external domains to appsSdkMetadata['openai/widgetCSP']
Check browser console for blocked domains

server.uiResource({
  // ... other config ...
  appsSdkMetadata: {
    'openai/widgetCSP': {
      connect_domains: ['https://api.example.com'],
      resource_domains: ['https://cdn.example.com'],
    }
  }
});

Comparison: Auto vs Manual

Auto Registration (Recommended)

// resources/weather.tsx
const propSchema = z.object({
  city: z.string(),
});

export const widgetMetadata = {
  description: 'Show weather',
  inputs: propSchema,
};

export default WeatherWidget;

Pros:

Zero boilerplate
Type-safe props
Automatic tool/resource registration
Hot module replacement
Standardized structure

Cons:

⚠️ Less control over registration details
⚠️ Must follow naming conventions

Manual Registration

// index.ts
server.uiResource({
  type: 'appsSdk',
  name: 'weather',
  htmlTemplate: htmlString,
  props: { city: { type: 'string', required: true } },
  appsSdkMetadata: { /* ... */ }
});

server.tool({
  name: 'weather',
  inputs: [{ name: 'city', type: 'string' }],
  cb: async (params) => { /* ... */ }
});

Pros:

Full control over configuration
Custom tool behavior
Can use raw HTML strings

Cons:

❌ More boilerplate
❌ Manual schema duplication
❌ Prop mapping is manual
❌ No HMR out of the box

Next Steps

UI Widgets Guide - General widget development
Project Templates - Explore available templates
Examples - Real-world widget examples

Getting Started

MCP Server

MCP Client

MCP Agents

Development

​UI Widgets

​Automatic Widget Registration

​Overview

​Quick Start

​1. Create a Project

​2. Create a Widget

​3. That’s It!

​How It Works

​The Flow

​1. Widget Discovery

​2. Metadata Extraction

​3. Tool Registration

​4. Resource Registration

​5. Props Flow

​Widget Metadata

​widgetMetadata Object

​Props Schema with Zod

​The useWidget Hook

​Key Features

​Complete Example: Weather Widget

​Testing in ChatGPT

​Advanced Features

​Accessing Tool Output

​Persistent Widget State

​Calling Other Tools

​Display Mode Control

​Development Workflow

​1. Start Dev Server

​2. Create Widget

​3. Test in Inspector

​4. Edit with Hot Reload

​5. Build for Production

​Under the Hood

​Server Initialization

​mountWidgets() Implementation

​Widget URL Structure

​Apps SDK CSP Configuration

​Configuration

​Custom Resources Directory

​Base URL for Production

​Environment Variables

​Best Practices

​1. Use Descriptive Schemas

​2. Provide Defaults

​3. Keep Widgets Focused

​4. Theme Support

​5. Error Handling

​6. Performance

​Troubleshooting

​Widget Not Registered

​Props Not Passed

​HMR Not Working

​CSP Errors

​Comparison: Auto vs Manual

​Auto Registration (Recommended)

​Manual Registration

​Next Steps
